Custom Landing Craft - Bay Weld Boats

The Raven - Landing Craft

Main Specs

• Hull Length: 42′
• Overall Length: 46’
• Beam/Width: 13.5′
• Power: Twin Cummins 550HP QSB 6.7 Diesels
• Fuel Capacity: 600 gallons
• Hull Construction: ¼” 5086 bottom / 3/16” 5086 sides

Sea Trial Performance

• Top speed: 42 mph
• Cruising speed: 28 mph
• Cruising Range: 450 miles
• Fuel Economy: .8 mpg

Additional Specs

• Seats 9
• Sleeps 6
• Thrustmaster DJ142 Water jets
• 2F 305-3 marine gears
• Glenndenning electric over hydraulic control system with joystick full control system
• Sea Keeper SK6 stabilization gyro
• Northern lights 9KW diesel generator
• Steel head 1000# capacity hydraulic crane
• Full electronics package and entertainment package
• Sea water and fresh water ice makers
• Bonded glass frameless windows
• Hydraulic pot puller, anchor winch, pressure washer
• Full vinyl wrap “Black Out” effect
• All LED lighting
• Teak trim through-out

Photos

jquery lightbox for textby VisualLightBox.com v6.1

“Smokey Bay” – 30’ x 9.5’ Landing Craft

Main Specs

• Hull Length: 30′
• Overall Length: 35’
• Beam/Width: 9.5′
• Power: Twin Suzuki 175HP Outbaords
• Fuel Capacity: 200 gallons
• Hull Construction: ¼” 5086 bottom / 3/16” 5086 sides

Sea Trial Performance

• Top speed: 40 mph
• Cruising speed: 27 mph
• Cruising Range: 350 miles
• Fuel Economy: 2 mpg @ cruise

Additional Specs

• Walk-thru cabin w/ seating for 6
• 66″ wide bow door gate
• Electric bow gate winch
• Espar D4 cabin heater
• Aft 3′ fishing deck space

Photos

jquery lightbox for textby VisualLightBox.com v6.1

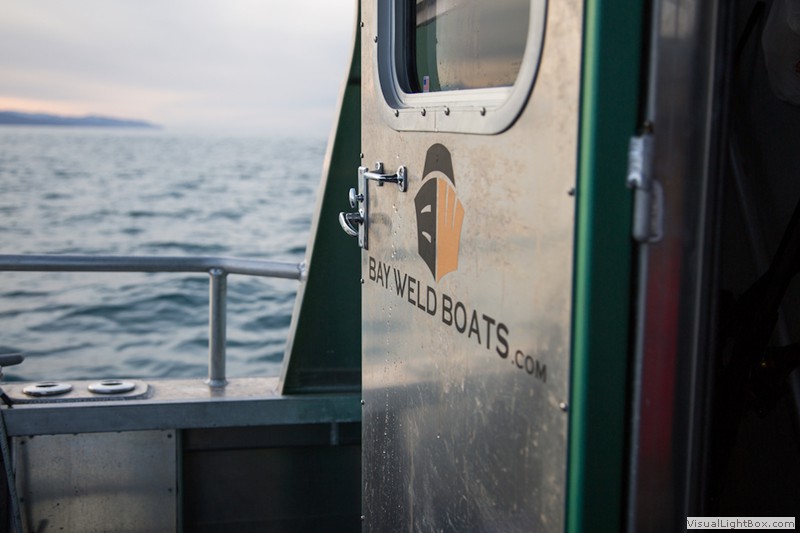

Farenorth Rose - Landing Craft

Main Specs

• Hull Length: 32.5′
• Overall Length: 37.5’
• Beam/Width: 10′
• Hull deadrise at transom: 14 degrees
• Power: Twin Yamaha 225HP Outbaords
• Fuel Capacity: 250 gallons – two tanks (125 gal each)
• Hull Construction: ¼” 5086 bottom / 3/16” 5086 sides

Sea Trial Performance

• Top speed: 40 mph
• Cruising speed: 25-30 mph
• Cruising Range: 350-400 miles
• Fuel Economy: 1.6 mpg @ cruise

Additional Specs

• Water Capacity: 40 gallons freshwater
• Berths: 4
• Accommodations: Full cabin accommodations with two forward facing helm seats, a dinette that makes into a bunk, a galley, an enclosed head space, and a below deck bunk room with 3 single bunks.
• Electronics compliment: Garmin electronics system
