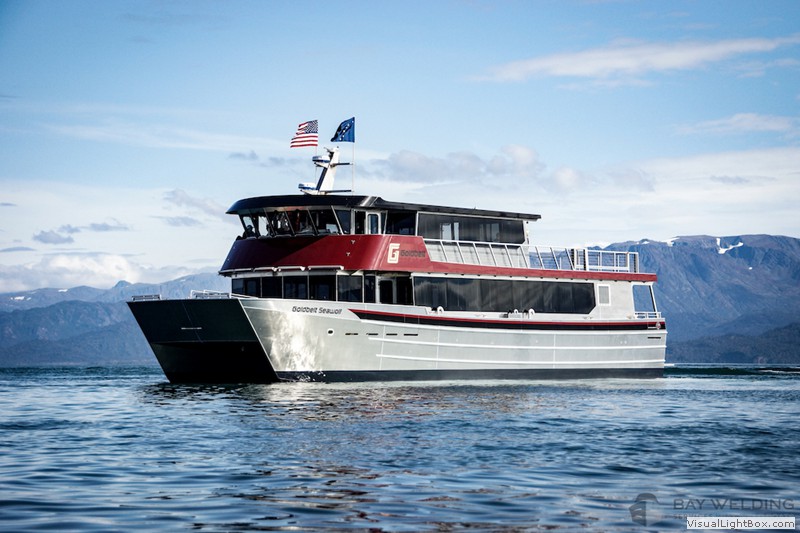

• Length Overall: 77 Feet
• External Beam: 25 Feet
• Hull Type: High Speed Catamaran
• Engine/Propulsion: Quad Scania Diesels, Hamilton Jets
• Horse Power: 700hp Per Engine
• Cruise Speed Range: kts
• Fuel Capacity: 1600 gallons, Diesel
• Top Speed: 37 mph
• Cruising Speed: 28 mph
• Cruising Range: 600 miles
• Fuel Economy: .4 mpg
• Two 77 gallon plastic fresh water tanks
• 6 gallon hot water heater run off 120 volt circuit
• 200 gallon aluminum waste water holding tank for heads
• 2 Jabsco full size – electric flush – marine toilet with macerators
• Microwave oven unit mounted in galley
• Built-in coffee system plumbed to freshwater
• Diesel fired boiler with heat registers located throughout upper and lower cabin
• Eight 120 volt backup heaters
• Marine 7 cu. ft. refrigerator installed in galley
• Anti-fouling bottom paint
• Hull Length: 38’
• Overall Length: 43’
• Beam/Width: 14’
• Power: Triple Yamaha 425s
• Fuel Capacity: 600 Gallons
• Hull Construction: 1/4” 5086 bottom, 3/16” sides
• Top Speed: 46 mph
• Cruising Speed: 30 mph
• Cruising Range: 350 miles
• Fuel Economy: .6 mpg
• USCG-inspected
• Wheel house raised 30” from main cabin level
• 6 berths in the V-berth arranged in a bunk bed style with two port and two starboard.
• Head with exterior entrance door
• Vinyl - cabin and hull striping, visor wrap
• Seakeeper 6 Gyro stabilizer
• Cabin Heater - Espar diesel fired cabin heater
• Electronics - Garmin transducer, radar, and screen. Optimus 360 control system
• Hull Length: 39’
• Overall Length: 44’
• Beam/Width: 13’
• Power: Triple Yamaha 425s
• Fuel Capacity: 500 Gallons
• Hull Construction: 1/4” 5086 bottom, 3/16” sides
• Top Speed: 45 mph
• Cruising Speed: 32 mph
• Cruising Range: 285 miles
• Fuel Economy: .6 mpg
• USCG-inspected
• V-Berth with double bunk, double wide bunk under dinette
• Head enclosure to have exterior access door opening to the main aft deck
• Galley on starboard side with three burner propane cooktop.
• Cabin Interior Teak Trim
• Vinyl - cabin and hull striping, visor wrap
• Seakeeper 6 Gyro stabilizer
• Cabin Heater - Espar diesel fired cabin heater
• Electronics - Garmin transducer, radar, and screen. Optimus 360 control system
• Hull Length: 42’
• Overall Length: 48’
• Beam/Width: 15.5’
• Power: Quad Suzuki 350s
• Fuel Capacity: 500 Gallons
• Hull Construction: 1/4” 5086 bottom, 3/16” sides Overall Length: 48’
• Beam/Width: 15.5’
• Power: Quad Suzuki 350s
• Fuel Capacity: 500 Gallons
• Hull Construction: 1/4” 5086 bottom, 3/16” sides
• Top Speed:
• Cruising Speed:
• Cruising Range:
• Fuel Economy:
• USCG-inspected
• Head enclosure located in the aft port cabin with an aft facing entrance door
• Galley inside aft main cabin entrance snack bar
• Vinyl – cabin and hull striping
• Cabin Heater – 2 Espar diesel fired cabin heater
• Electronics – Garmin transducer, radar, and screen. Optimus 360 control system
We build custom aluminum vessels, with an emphasis on the custom, yet they all share the same DNA.
